5.0 based on 28 ratings and reviews
Brand : Blue Elephant
Model : ELECNC-1530ATC
Category : ATC CNC Router
Price Range : $13000 to $18000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

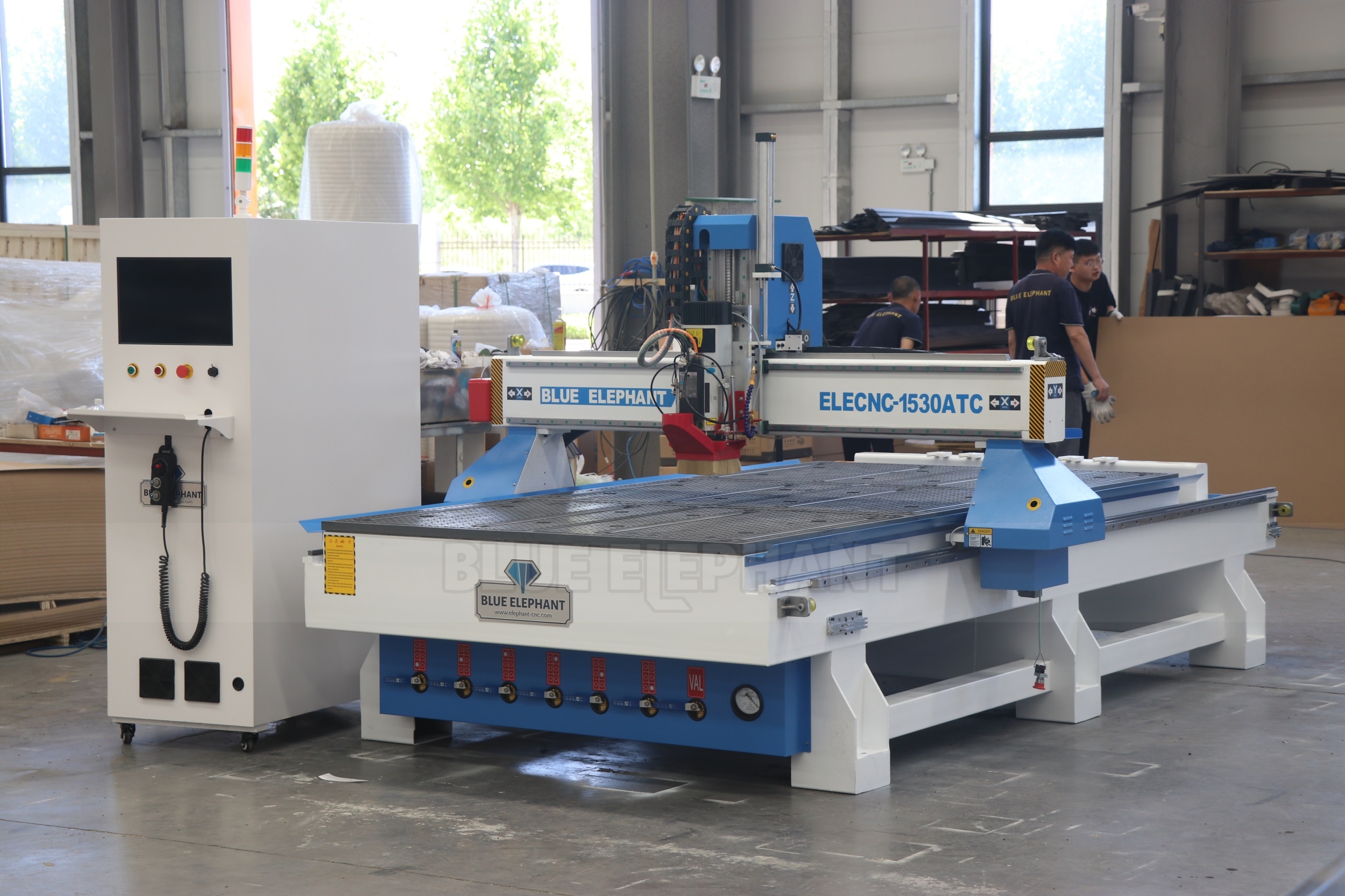

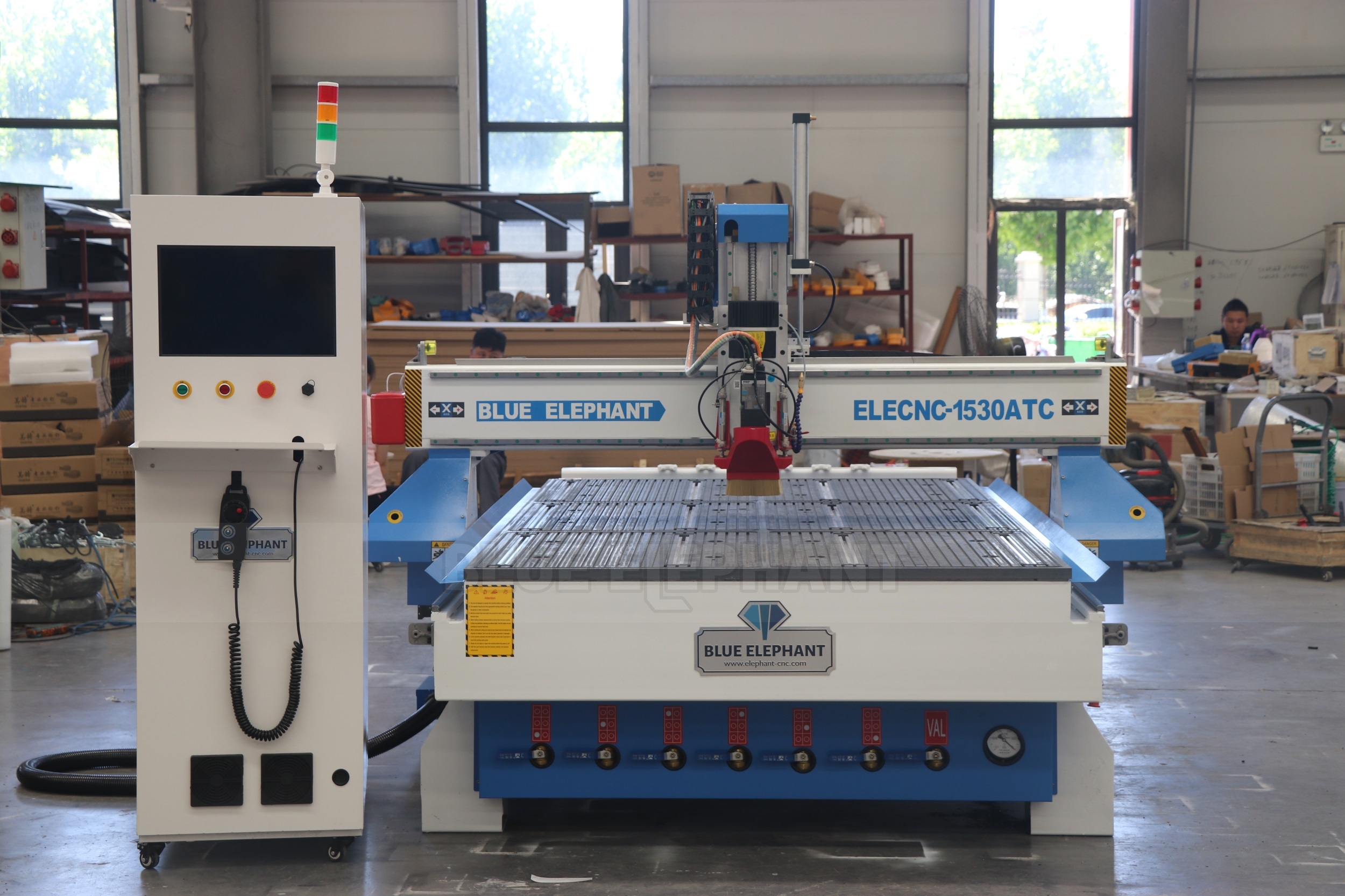

This 1530 ATC CNC router is one of the most classic and popular CNC among the tool change engraving machines. It adopts the linear tool change magazine with a fast tool change speed. And the tool changing can be completed within a few seconds, which greatly improves productivity.
1. Vacuum table saves time of fixing workpiece such as MDF plate on the table.

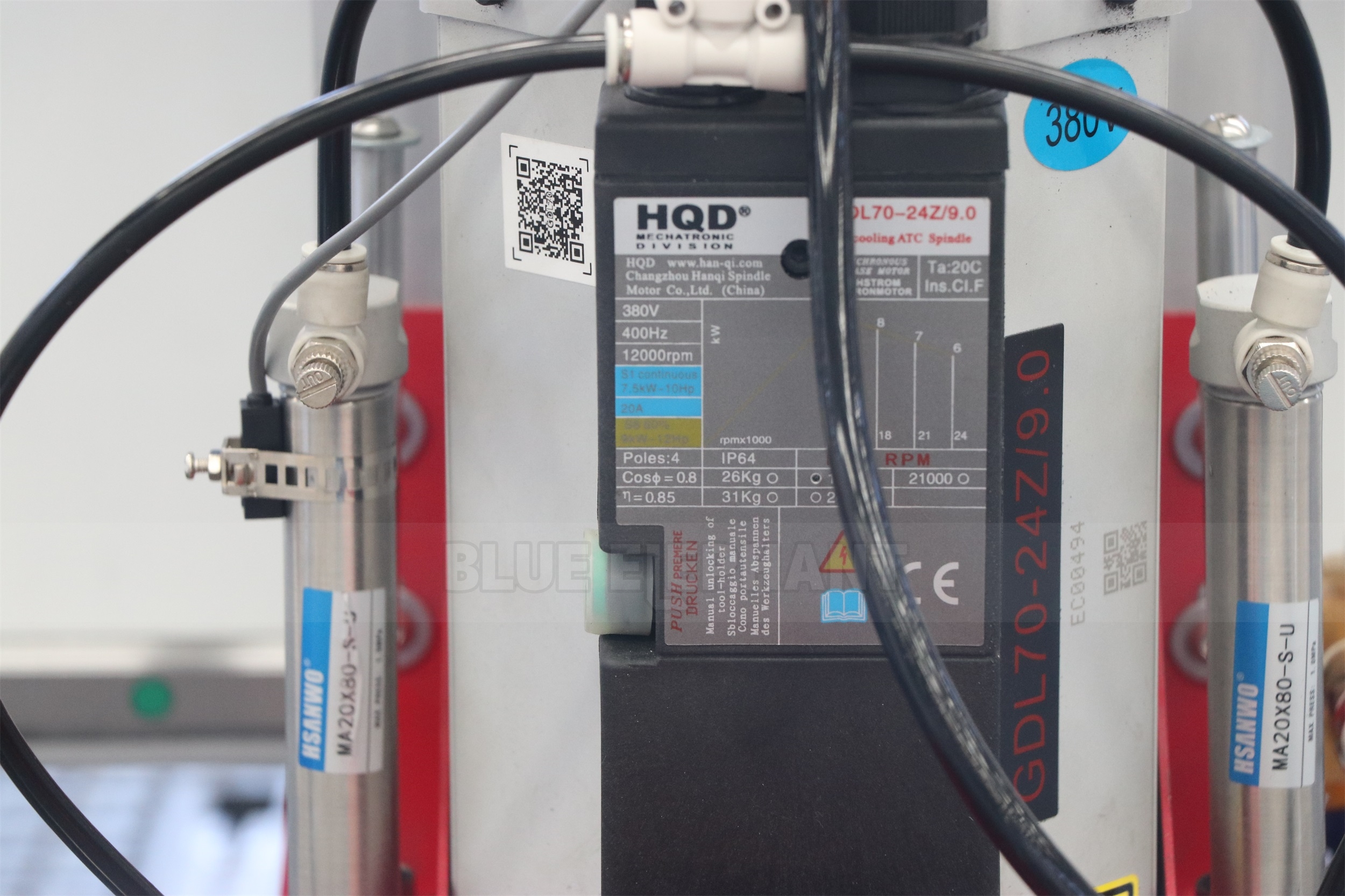

2. 9kw HQD ATC spindle, powerful and the cutting ability in the workpiece is stronger.

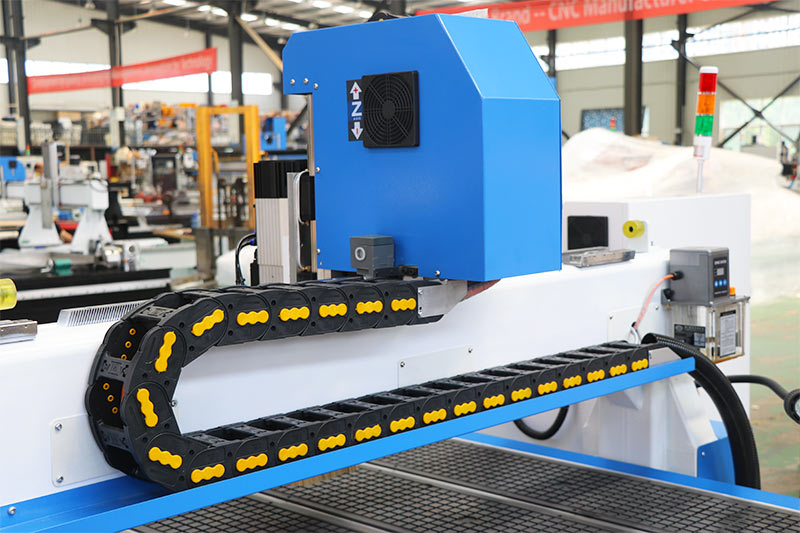

3. The CNC machine is equipped with a separate control cabinet, more convenient in terms of operation and maintenance.
4. This machine has always been well received by large companies or someone with diverse processing needs.
| Model | ELECNC1530ATC |
| Working area | 1500*3000*200mm |
| Spindle type | 9KW HQD ATC spindle |
| Control system | Taiwan LNC MW2200/Syntec 60CB control system |
| Tool magazine | 8 pcs linear tool magazines with 8 pcs ISO 30 tool holders |
| Driving system | 1.5KW leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Pins | Pop-up pins on the X and Y-axis |
| Worke table | Vacuum & T-slot working table |
| Vacuum pump | 11KW air cooling vacuum pump |
| Dust collect system | 3KW dust collector |
| Working voltage | 220V/380V, 3ph |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Machine structure | Heavy duty body |
| Linear guide | Taiwan Original Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |

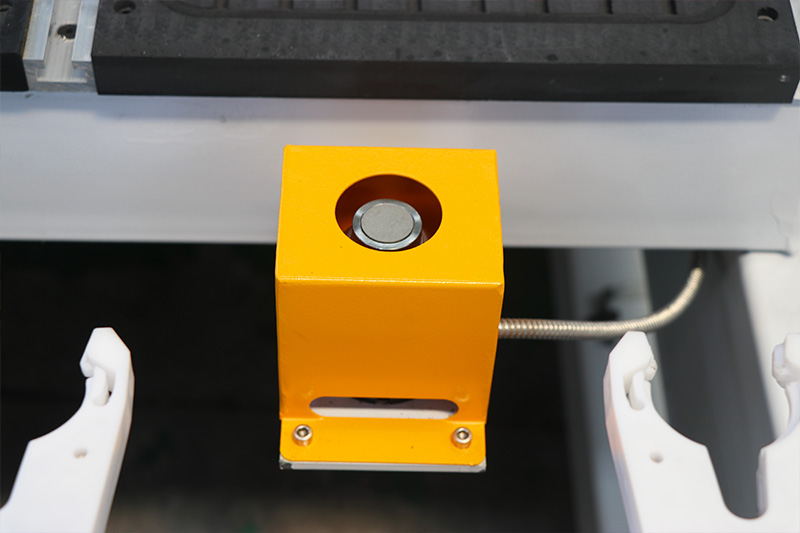

| Tool calibration | Auto tool sensor calibration |

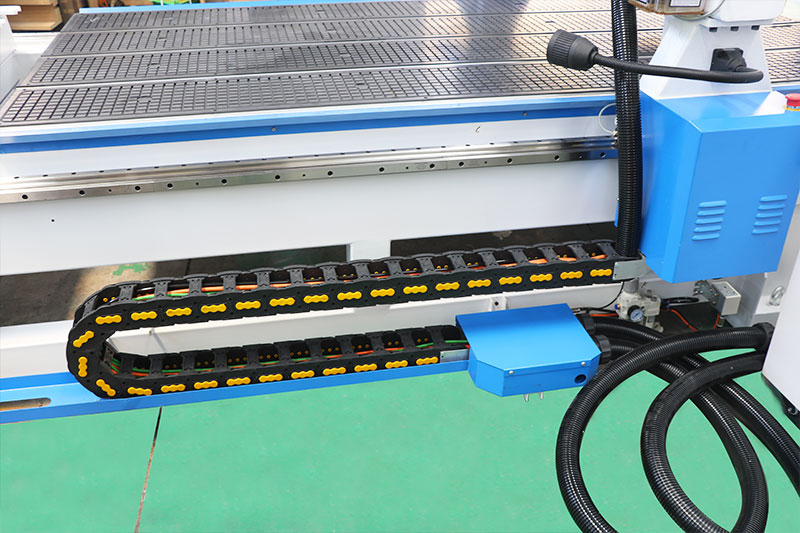

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
The standard tools is 8pcs, but we can also make 10pcs, 12pcs, or 16pcs as you requested.
These is USB port on controller, so you can transfer files by the USB port.

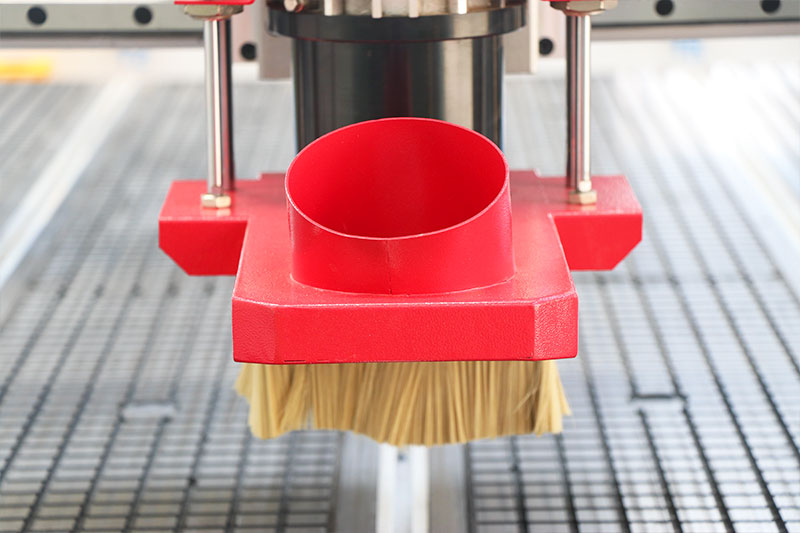

Connect with dust collector and keep machine from dust. Use lubricating oil to lubricate guide rails frequently.

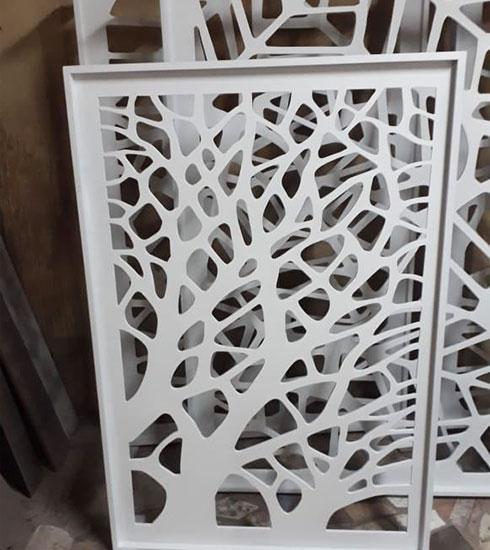

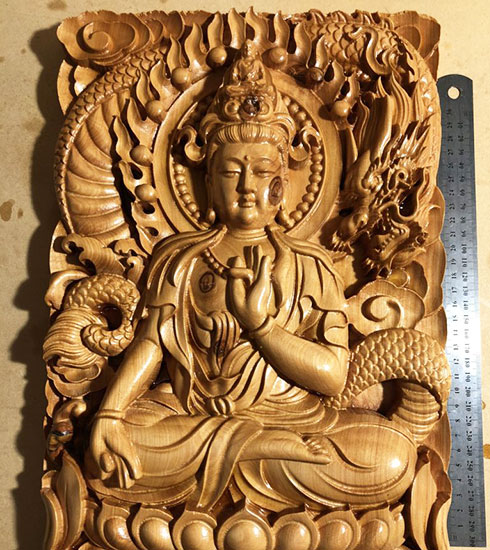

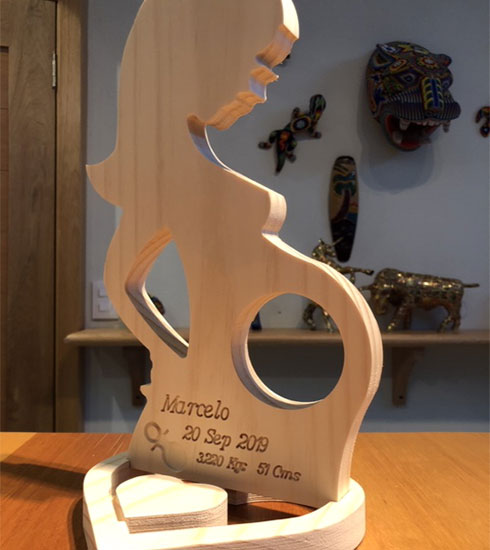

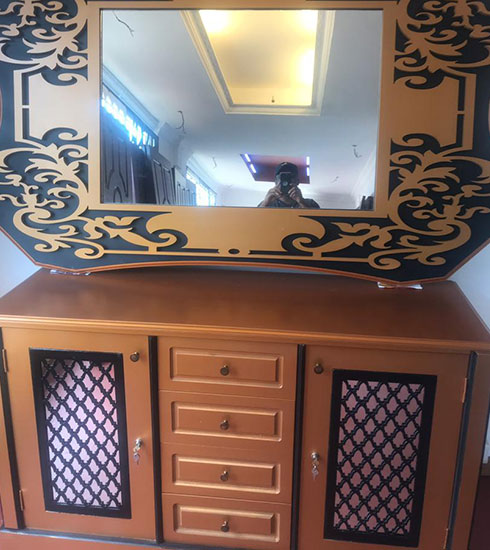

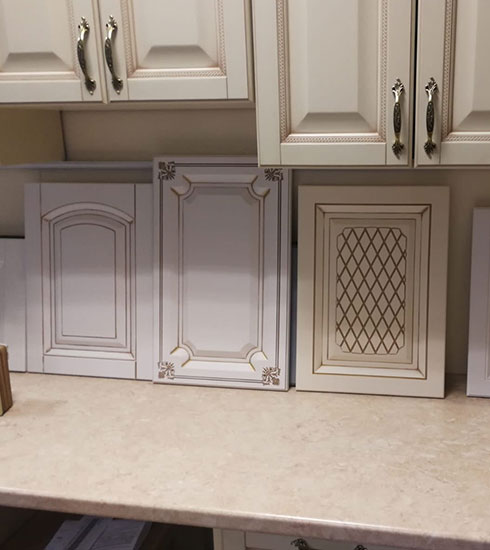

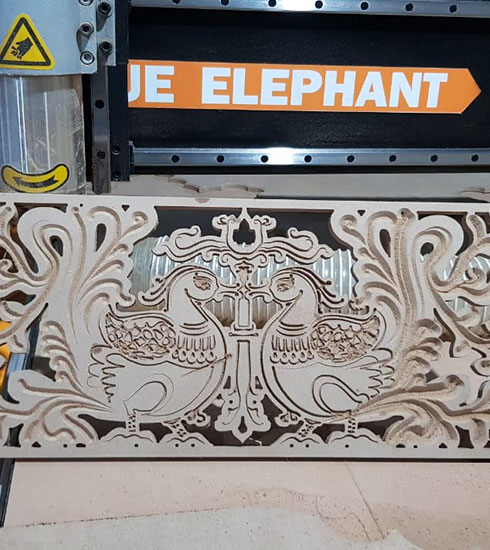

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
15+ years in business as an industry leader
75000＋㎡ High-level Production Base
25+ Dedicated Production Bays
10 technical service centers around the world
30+ locations worldwide
500+ emplovees for service you
8000+ client' Trust and recognition
Exported to 180+ countries and regions in the world
For any inquiries, don’t hesitate to contact us at:
